88370049 Cargo Floor CF500 SL2 B Control Valve Complete - 2007 Onwards - RIGHT HAND DRIVE

88370049 Cargo Floor CF500 SL2 B Control Valve Complete - 2007 Onwards - RIGHT HAND DRIVE 88370049 Cargo Floor CF500 SL2 B Control Valve Complete - 2007 Onwards - RIGHT HAND DRIVE 88370049 Cargo Floor CF500 SL2 B Control Valve Complete - 2007 Onwards - RIGHT HAND DRIVE

Cargo Floor CF500 SL2 B Control Valve Complete - 2007 Onwards - RIGHT HAND DRIVE

These are fitted on the Titan's and the BMI's that have the valve mounted on the RIGHT hand side.

Note well. There are two types of complete control valve blocks that are available for the CF500 SL2. These are B control and E control. The B has manual switch over using a T bar. The E control is electronic.

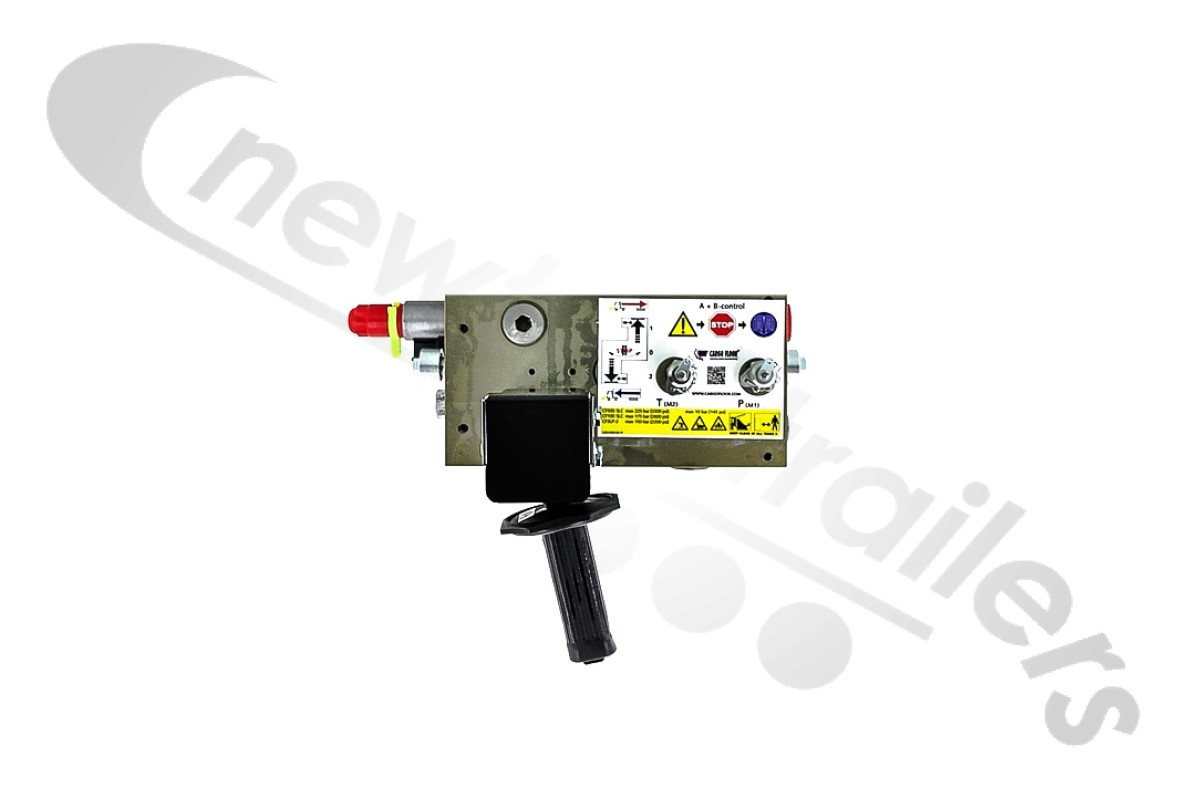

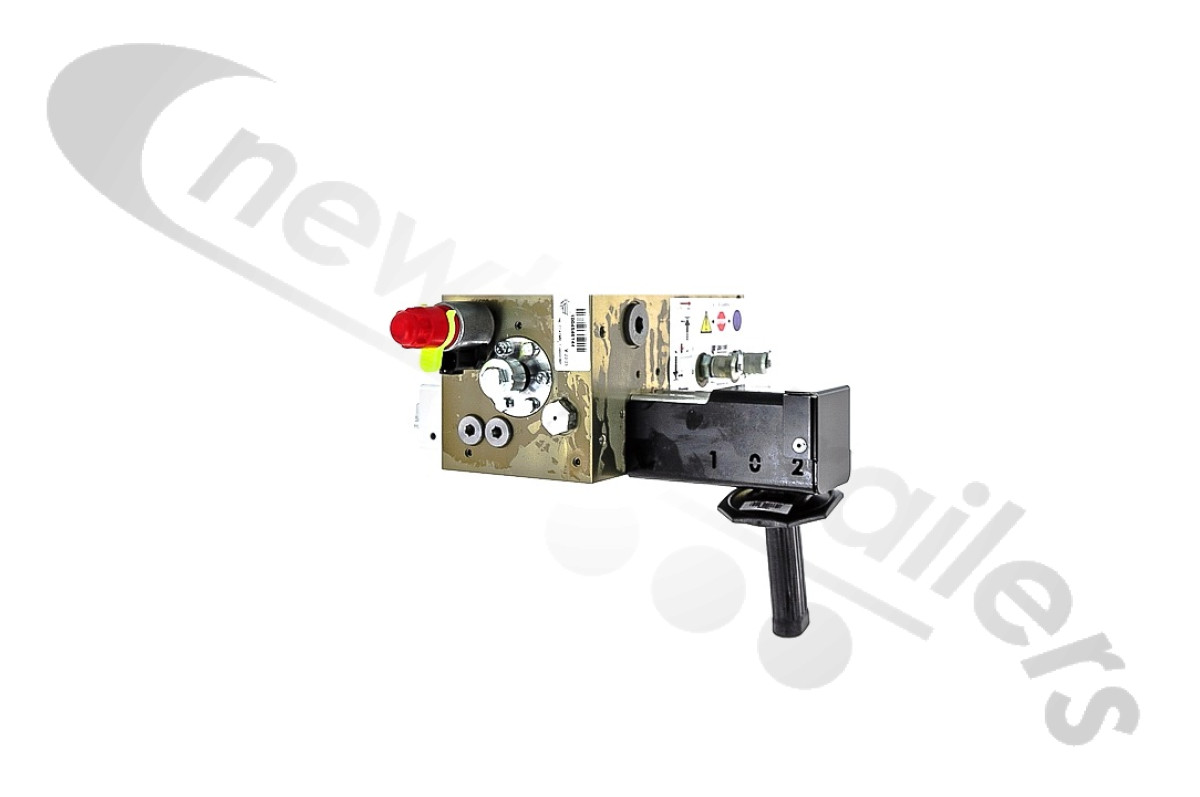

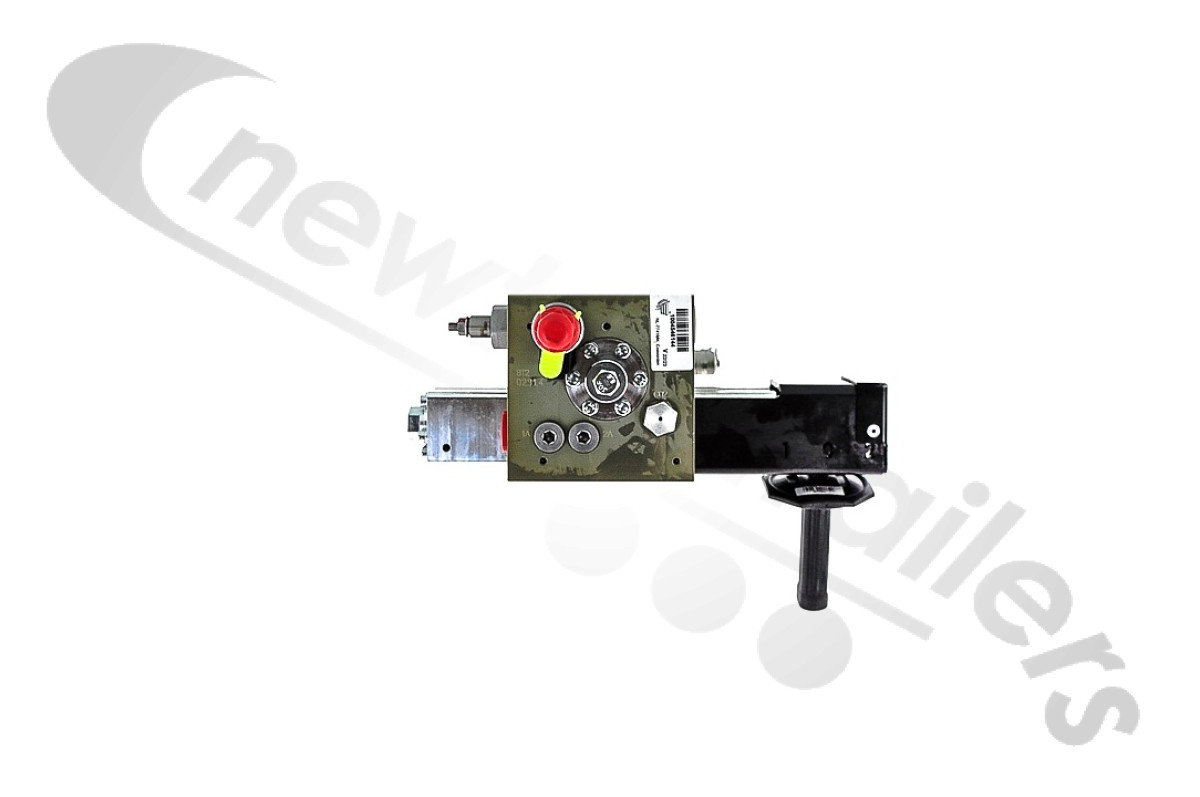

This one is the B control valve complete with T-Bar. Solenoid and seals for this valve can be purchased separately.
The CF500 SL1 is located in the center of the chassis. The CF500 SL2 is located on the outside of the chassis.
For clarity there was a CF300 then came CF500 and then came CF500 SL2



Part of the following drive units:
